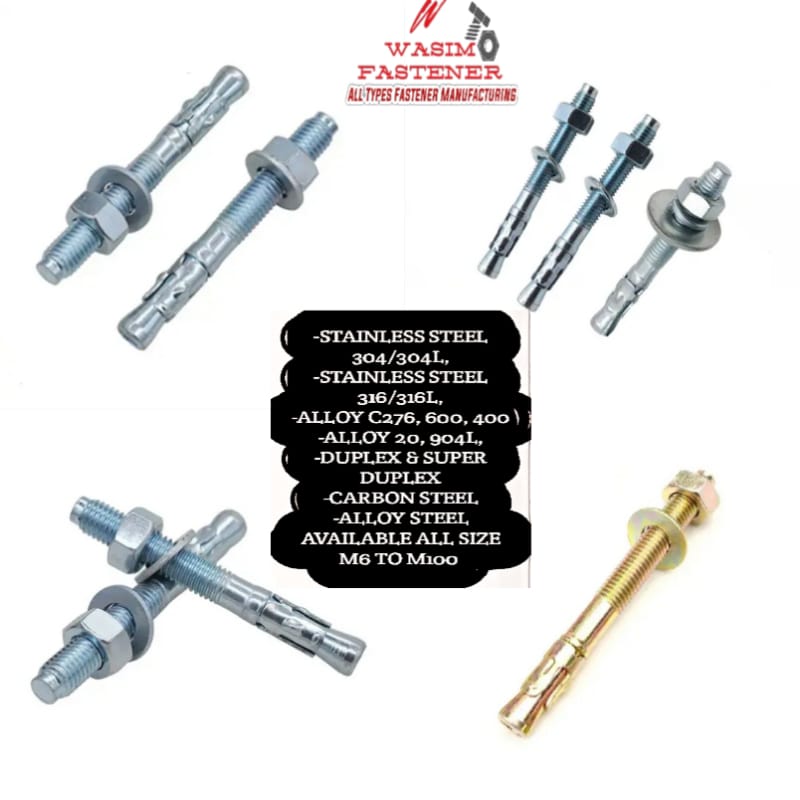

DUPLEX & SUPER DUPLEX STEEL ANCHOR
Duplex Steel UNS S31803 Anchor Bolts are Anchor Bolts that contain elements such as nickel and molybdenum along with chromium. These elements provide them with good yield strength. It also provides resistance to corrosion. They have excellent mechanical properties as well as chemical properties. Because of this, they withstand very well in higher temperature and pressure bound conditions. Duplex Steel UNS S32205 Anchor Bolts have high tensile strength. They also have the property of fabricability. These duplex and super duplex Anchor Bolts have high strength and are ductile.
The Super Duplex Steel s32750 Anchor Bolts have properties such as weldability and also have excellent finishing. They are resistant to general corrosion even at unfavourable temperature conditions. The Super Duplex Steel 32760 Anchor Bolts have properties such as great tensile strength. These are also durable. These Super Duplex Steel s32760 Anchor Bolts also have the characteristic of being weldable. They also can be fabricated easily. Also, while manufacturing these Anchor Bolts, all the necessary standards and norms are considered, so that good quality products are manufactured.
How It Work?
Laboratory Tested
Quality Assurance
On Time Delivery
Shipping Globally
Best Services
Specification :-
| Grades | Duplex Steel UNS S31803 / S32205 Super Duplex Steel 2507 (UNS S32750/S32760) |
| Standard | ANSI – American National Standards Institute
|
| Size | M10, M4, M16, M36 M2.5, M6, M30, M12, M8, M14, M2, M3, M20, M24, M5 to M160 | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex S31803 | S31803 | 1.4462 |
| Duplex S32205 | S32205 | 1.4462 |
| Super Duplex S32750 | S32750 | 1.4410 |
| Super Duplex S32760 | S32760 | 1.4410 |
Chemical Composition
| Grade | C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| S31803 / S32205 | 1.0 max | 0.03 max | 0.02 max | 2.0 max | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 max | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| S32750 / S32760 | 0.030 max | 0.24 - 0.32 | 0.035 max | 0.80 max | 1.20 ma | 3.0 – 5.0 | - | 24.0 – 26.0 | 0.020 max | 6.00 - 8.00 |
Mechanical Properties
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| S31803 / S32205 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
| S32750 / S32760 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Applications and Uses
- Chemical Industries
- Oil & Gas Industrires
- Power Plant Industries
- Shipbuilding Industries
- Fertilizer Industrires
- Petrochemical Industrires
- Sugar Industrires
- Cement Industrires
