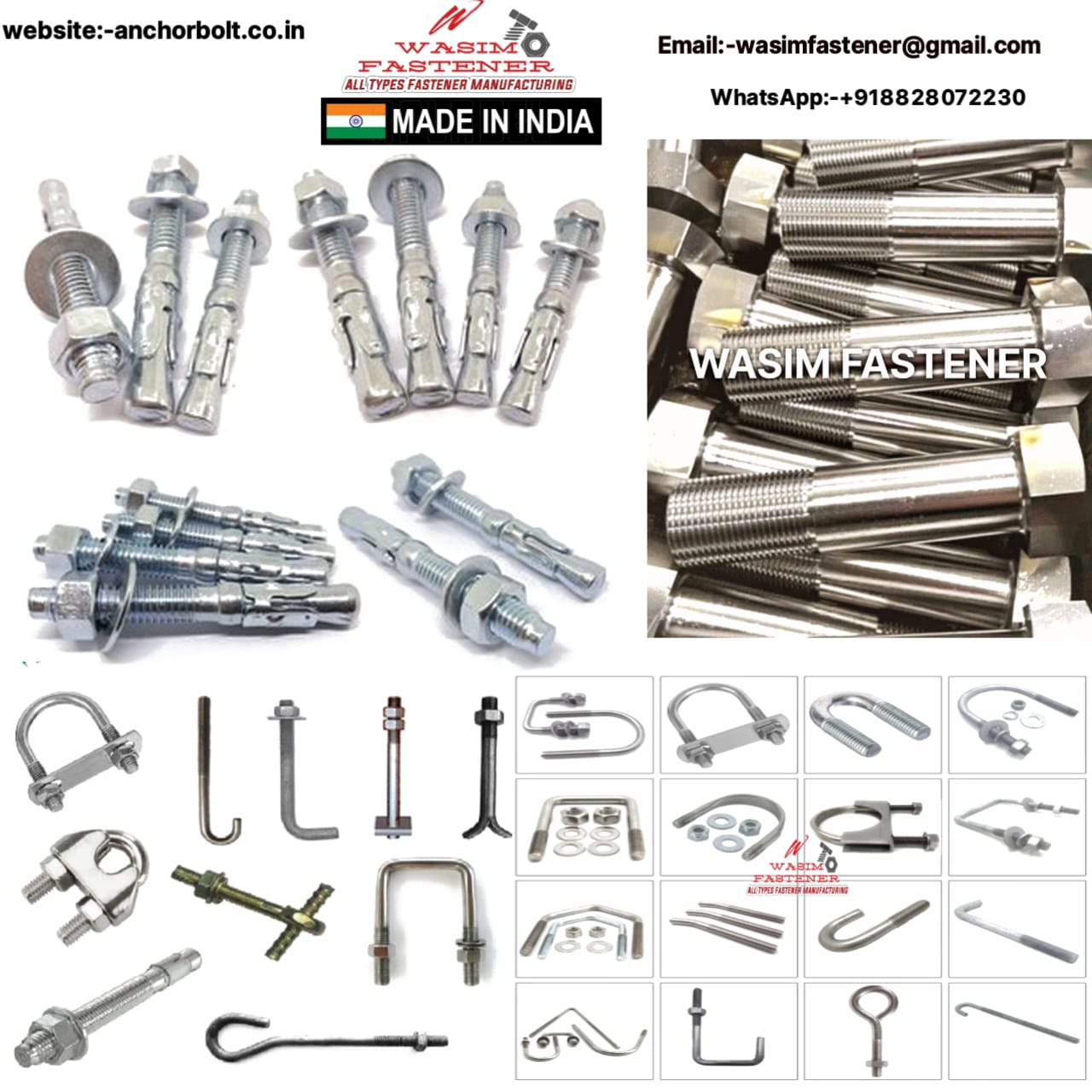

Stainless Steel Anchor Bolts
Leading Stainless Steel Anchor Bolts producer in India is WASIM FASTENER. We manufacture the bolts, nuts, screws, and other fasteners in accordance with various standards and requirements using different material grades. The stainless steel grade 316 is primarily used in the production of stainless steel wedge anchors.
This is due to the fact that anchor bolts are utilized in corrosive environments. High corrosion resistance, particularly against chloride ion corrosion stress, is exhibited by the 316 stainless steel anchor bolts. The 316 stainless steel L anchor bolts are appropriate for corrosive situations because of their molybdenum content.

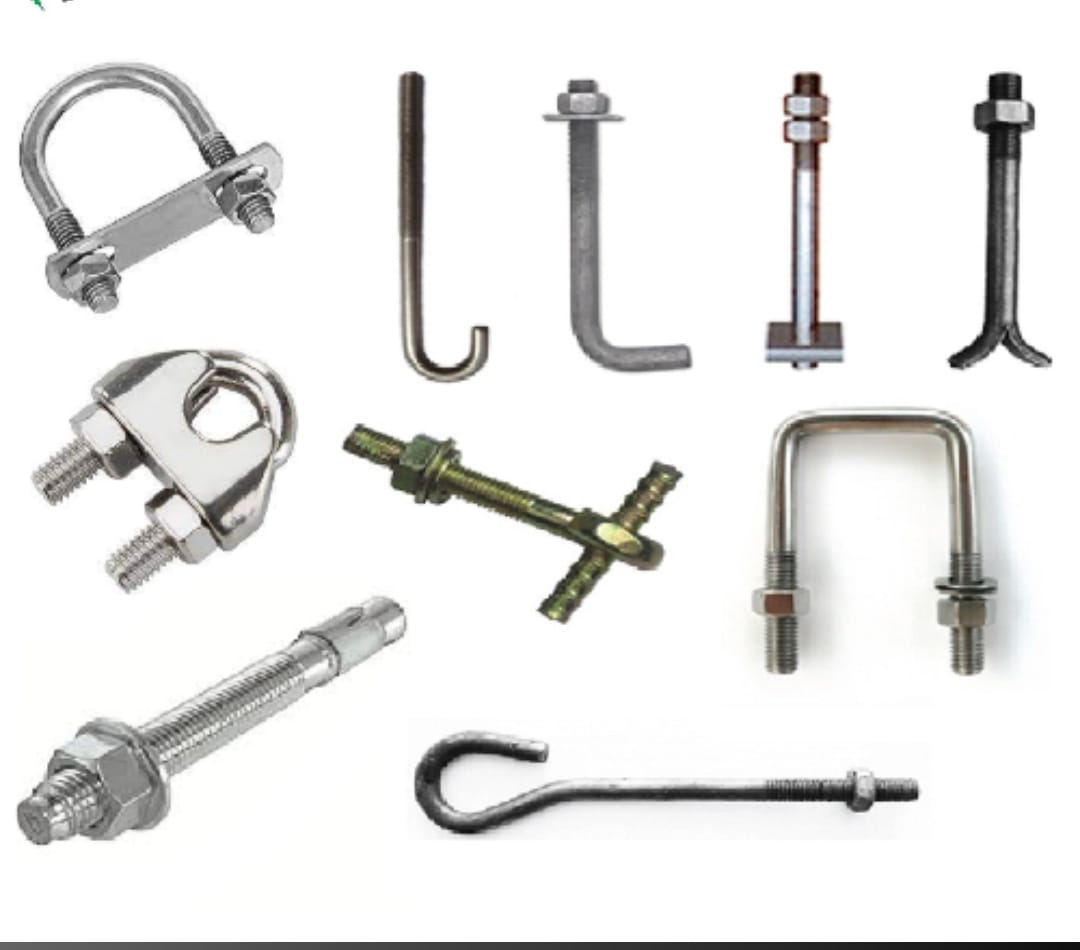

There are several sorts and forms, such L and J, which are intended for various uses. The majority of applications for stainless steel J anchor bolts and other kinds involve joining parts to concrete surfaces. Different types of anchor bolts are utilized, including those with expansion, sleeves, bends, and wedges.
| Anchor Bolts | M12 Anchor Bolts |
The stainless steel bent anchor bolts come in handy for fastening items to each other perpendicularly when the bolt is positioned in a bent direction. The stainless steel expansion anchors are used in situations that need a larger connection.
For some applications, there must be room between the bolt hole and the head to accommodate additional components. These situations call for the usage of stainless steel sleeve anchor bolts. These various types of bolts, including 316 Stainless Steel toggle bolts and others, are made from the robust and corrosion-resistant 316 stainless steel.
We provide various sizes and varieties of these anchor bolts. To learn more about the many varieties, including the pricing of Stainless Steel Wedge Anchor Bolts, kindly get in touch with us.
 |  |  |
 |  |  |
Interior Use of Hex Head Anchor Bolt
Check Stainless Steel J Anchor Bolts, Stainless Steel Expansion Anchors Dimension, 316 stainless steel toggle bolts Size Chart, Supplier of Stainless Steel Wedge Anchors
| Options | Material | Ø (mm) | L (mm) | Drill Bit (mm) |
|---|---|---|---|---|
| Anchor – Interior | Zinc | 12 | 120 | 12 |
Exterior Use of Anchor Bolts
| Options | Material | Ø (mm) | L (mm) | Drill Bit (mm) |
|---|---|---|---|---|
| Anchor – Exterior | 316 | 12 | 120 | 12 |
Specification of Stainless Steel Anchor Bolts

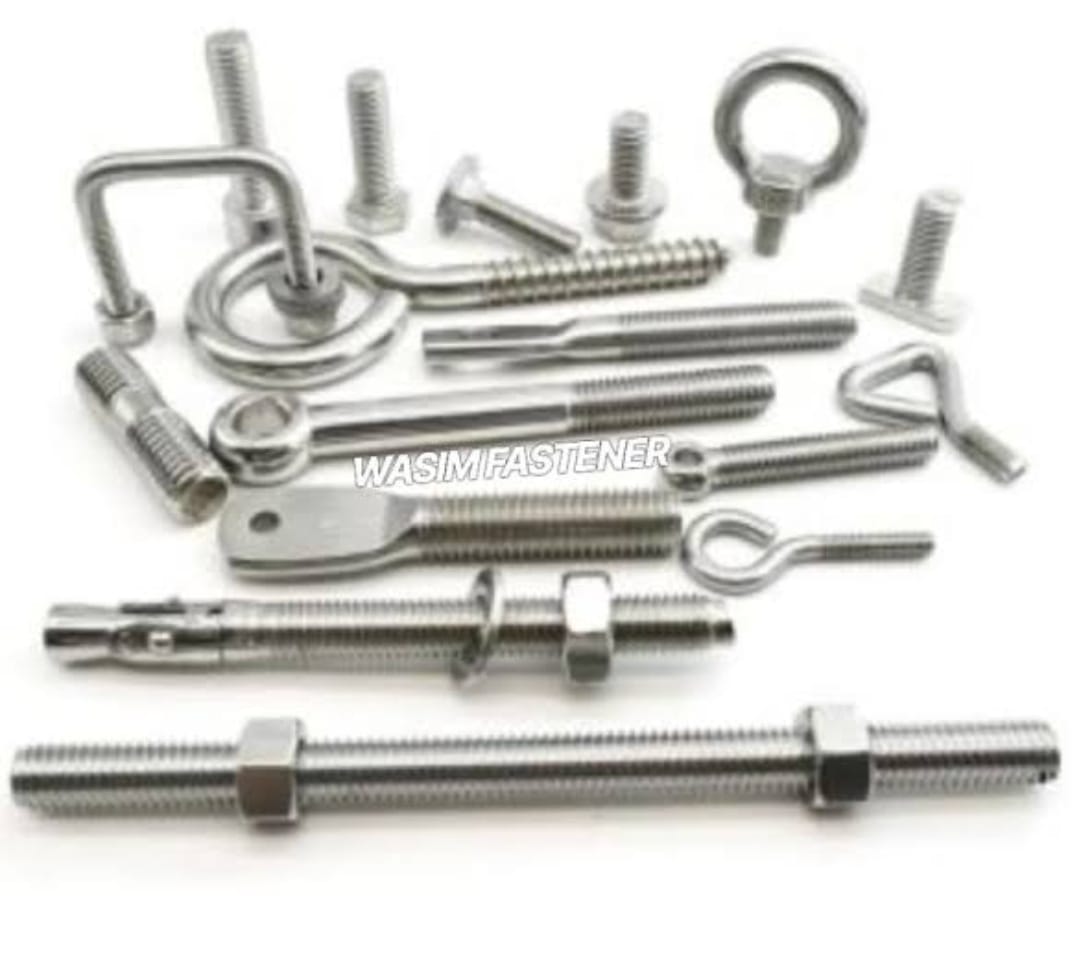

Common types of M12 Anchor Bolts

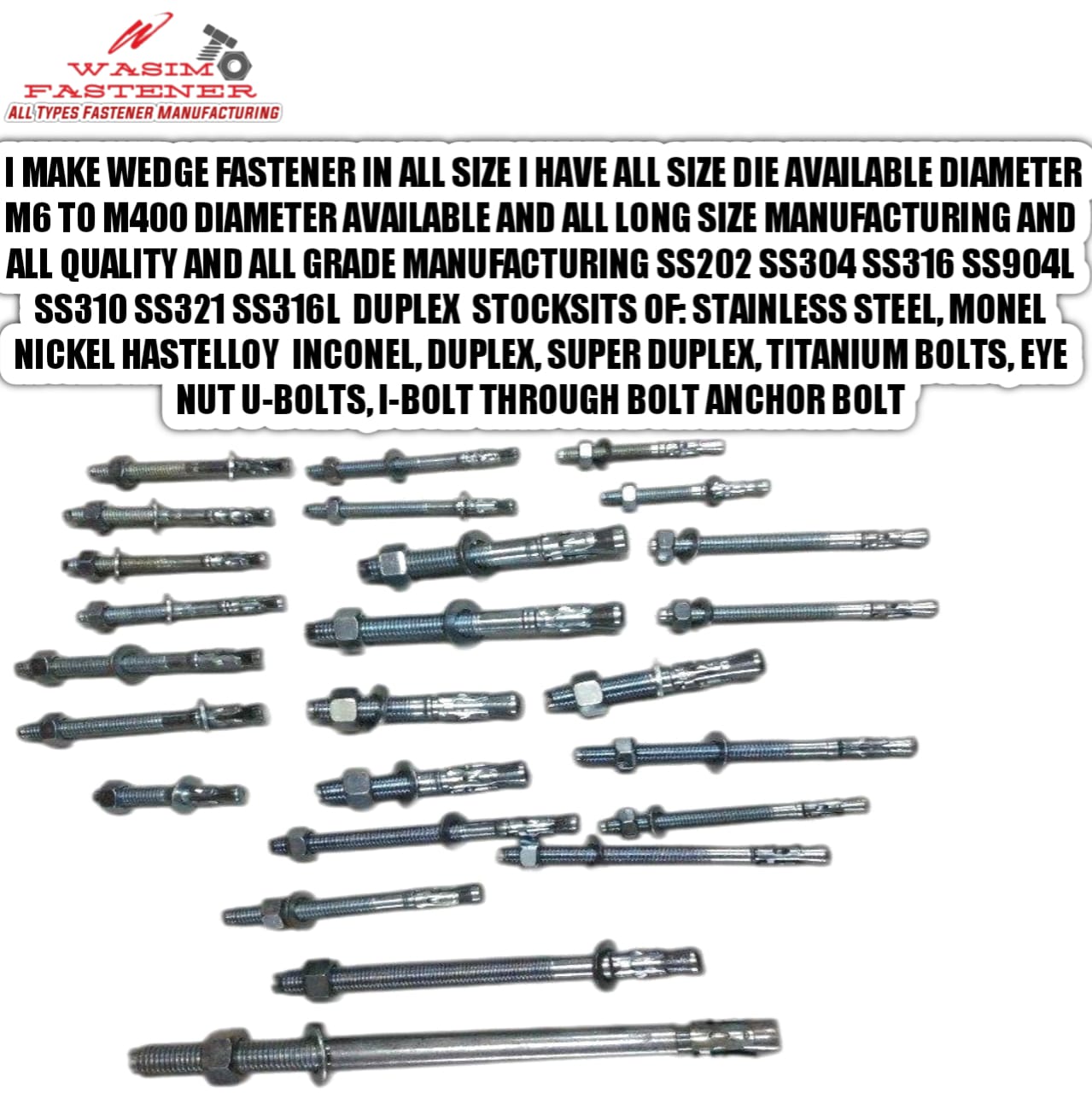

Wedge Anchors
Diameters: 1/4″ – 1-1/4″ stocked
Thread: coarse
Finish: zinc plate, stainless steel
Grade: grade 2, 304 SS, 316 SS
Stainless Steel anchor bolt Features
- Easy to use
- Durability
- Rugged construction
Various sizes available of L Hook Anchor Bolts
Buy from oldest Stainless Steel Anchor Bolt Manufacturer in India, Stockholder of Stainless Steel Wedge Anchor Bolts, SS 304 Anchor Bolt, Check SS Concrete Anchor Bolts, M12 Anchor Bolts Drill Size Chart
| Anchor Dia. | Anchor Length | Thread Length | Anchor Hook Length |
| 3/8″ | 6″ | 1-3/4″ | 1″ |
| 3/8″ | 8″ | 1-3/4″ | 1″ |
| 1/2″ | 6″ | 1-3/4″ | 1-1/2″ |
| 1/2″ | 8″ | 1-3/4″ | 1-1/2″ |
| 1/2″ | 10″ | 1-3/4″ | 1-1/2″ |
| 1/2″ | 12″ | 1-3/4″ | 1-1/2″ |
| 1/2″ | 14″ | 2″ | 1-1/2″ |
| 1/2″ | 16″ | 2″ | 1-1/2″ |
| 1/2″ | 18″ | 2″ | 1-1/2″ |
| 5/8″ | 8″ | 2″ | 2″ |
| 5/8″ | 10″ | 3-3/4″ | 2″ |
| 5/8″ | 12″ | 3-3/4″ | 2″ |
| 5/8″ | 14″ | 3-3/4″ | 3″ |
| 5/8″ | 18″ | 4″ | 3″ |
| 3/4″ | 12″ | 3-3/4″ | 3″ |
| 3/4″ | 15″ | 3-3/4″ | 3″ |
| 3/4″ | 16″ | 3-3/4″ | 3″ |
| 3/4″ | 18″ | 4″ | 3″ |
| 3/4″ | 24″ | 4″ | 3″ |
| 1″ | 12″ | 4″ | 4″ |
| 1″ | 18″ | 4″ | 4″ |
| 1″ | 24″ | 4″ | 4″ |
| 1″ | 36″ | 6-1/4″ | 4″ |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
We can manufacture and export any kind of Brass Product as per specifications (custom drawing and samples) for more information, please
